Home > Products > RCB-10

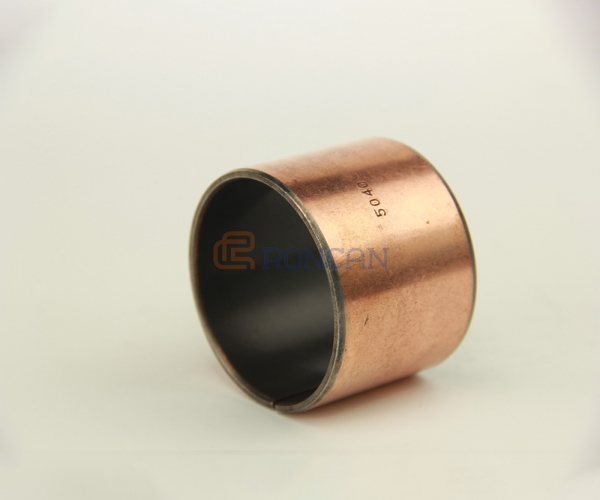

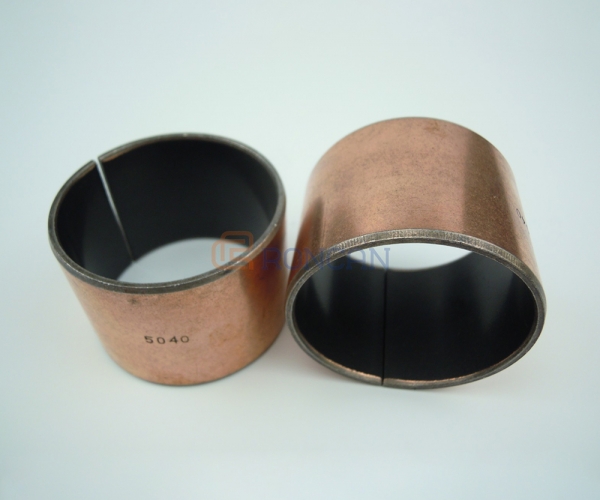

RCB-10

Suitable for low speed and heavy load, intermittent operation and swing conditions can not be refueling or not allowed to refueling occasions; Simplify fuel supply design to reduce repair and maintenance costs and time; Good wear resistance, low friction coefficient, extended product life; It can be applied at high temperature +280℃ or low temperature -195℃. Thin-wall structure, light weight, reduce the mechanical volume; Viscid-slip is small, smooth operation; It is suitable for most solvents and many industrial liquids (including water and oil) and steam applications.

Contact Us > Download File

Technical Parameter

Material organization

1. The mixture of PTFE and fiber 0.01~0.03mm can form a good transfer film to protect the grinding shaft and provide the self-lubricating performance of the bearing.

2. Copper powder layer 0.20~0.35mm, with good bearing capacity and wear resistance, good thermal conductivity can transfer the heat generated during the operation of the bearing in time. The composite material can penetrate into the gap of the copper powder ball to improve the bonding strength.

3. Low carbon steel provides good load bearing performance and heat transfer.

4. Copper/tin plating layer 0.002mm, so that it has better corrosion resistance.



Maximum bearing capacity

Static load250N/mm2
Friction coefficient0.03~0.20
Low speed operatio140N/mm2
Rotating, rocking motion60N/mm2

Maximum line

speed

Dry friction2m/s
Fluid lubrication>2m/s

Maximum PV value

(dry friction)

It works intermittently3.6N/mm2*m/3Thermal conductivity42W(m*K)-1
長期運作1.8N/mm2*m/3
Service temperature-195℃~+280℃Linear expansion coefficient11*10-6*K-1







Typical use:


The RCB-10 material can be used for a long time under dry friction and lubrication conditions without requiring more maintenance;

Steam trucks: tractors, combine harvesters, crop sprayers, bulldozers, graders and other construction machinery; In the automotive industry, it is suitable for power steering pumps, steering gear thrust gaskets, disc brakes, shock absorbers, door hinges, wipers, chair adjusters, air valves and solenoid valves, etc.

Office business machinery: copier, fax machine, printer, mail processor, etc.

Hydraulic components and valves: gear pump, plunger pump, vane pump, ball valve, butterfly valve, cylinder, cylinder and other hydraulic components;

Household appliances: refrigerator, air conditioner, vacuum cleaner, sewing machine, cleaning machine, microwave oven and fitness equipment, etc.

And other logistics machinery, packaging machinery, textile machinery, port machinery, mining machinery and forest machinery and so on.
